DL 25 | DL 30 | 26-Piece Gasket Set – Lamborghini – Complete Engine Gasket Kit

This 26-piece gasket set is a comprehensive engine and transmission gasket kit designed for DL 25, DL 30 and DL 30 Super tractors.
It is intended for maintenance work, repairs, and complete engine and gearbox overhauls.

The set includes all essential gaskets for the engine, injection system, crankshaft, gearbox, rear axle, and auxiliary components. The composition is workshop-oriented and covers the typical sealing points required for these tractor models.

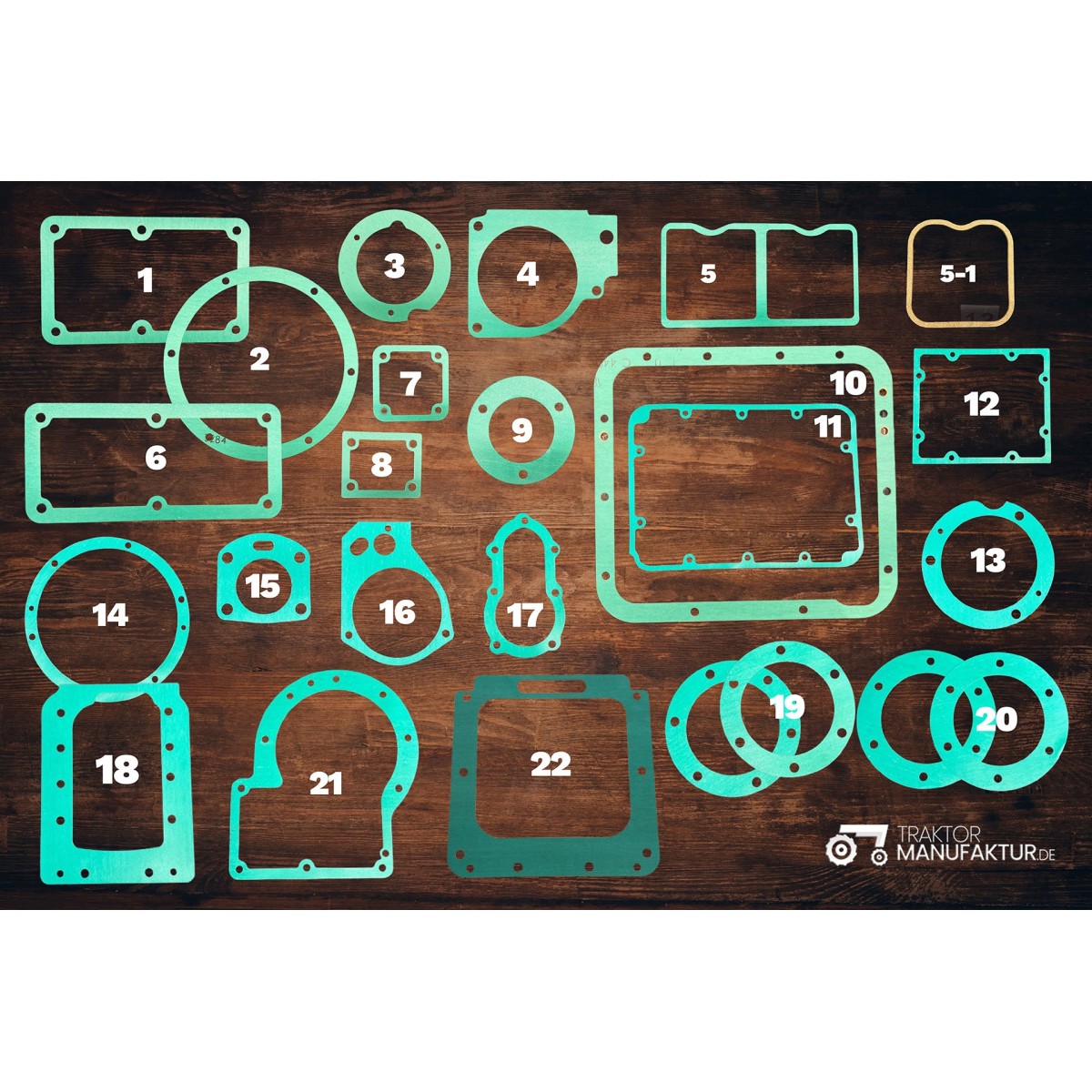

Set contents / Included gaskets

01 | Transmission gasket | DL 30 Super | DL 30 | DL 25 | for DS > 10599 | 1x
02 | Crankshaft bearing bush | DL 30 Super | DL 30 | DL 25 | for DS > 10592 | 1x
03 | Crankshaft bearing bush | DL 30 Super | DL 30 | DL 25 | for DS > 10597 | 1x
04 | Injection pump gasket | DL 30 Super | DL 30 | DL 25 | for DS > 10594 | 1x
05 v1 | Valve cover gasket | DL 30 Super | DL 30 | DL 25 | for DS > 10607 | 1x
05 v2 | Valve cover gasket (rubber-cork) | MWM KD12D v3 | for DS > 4160 | 2x
06 | Engine side cover gasket | DL 30 Super | DL 30 | DL 25 | for DS > 10596 | 1x
07 | Diesel pump gasket | DL 30 Super | DL 30 | DL 25 | for DS > 10602 | 1x
08 | Injection pump / engine gasket | DL 30 Super | DL 30 | DL 25 | for DS > 10600 | 1x
09 | Camshaft gasket (LA side) | DL 30 Super | DL 30 | DL 25 | for DS > 10601 | 1x
10 | Engine side cover gasket | DL 30 Super | DL 30 | DL 25 | for DS > 10595 | 1x
11 | Gasket | DL 30 | DL 25 | for DS > 10742 | 1x
12 | Gasket | DL 30 | DL 25 | for DS > 10743 | 1x
13 | Crankshaft oil seal v2 | DL 30 | DL 25 | for DS > 10319 | 1x
14 | Crankshaft oil seal v1 | Lamborghini engine | DL 30 | DL 25 | for DS > 10318 | 1x
15 | Gap filter gasket | DL 30 | DL 25 | for DS > 10321 | 1x
16 | Diesel pump housing gasket | DL 30 | DL 25 | for DS > 10322 | 1x
17 | Internal gearbox gasket | DL 30 | DL 25 | for DS > 10736 | 1x
18 | Internal gearbox gasket | DL 30 | DL 25 | for DS > 10737 | 1x
19 | Rear axle support cone | DL 30 | DL 25 | for DS > 10738 | 2x
20 | Rear axle support cone | DL 30 | DL 25 | for DS > 10739 | 2x
21 | Rear gearbox plate | 1191 | DL 30 | DL 25 | for DS > 10740 | 1x
22 | Rear PTO gasket | DL 30 | DL 25 | for DS > 10741 | 1x

The quantities of the individual gaskets are matched to real repair requirements, including components that must be installed more than once.

All gaskets are precision-manufactured, suitable for continuous agricultural operation, and help reliably prevent oil and fluid leaks, ensuring long-term engine and drivetrain reliability.
