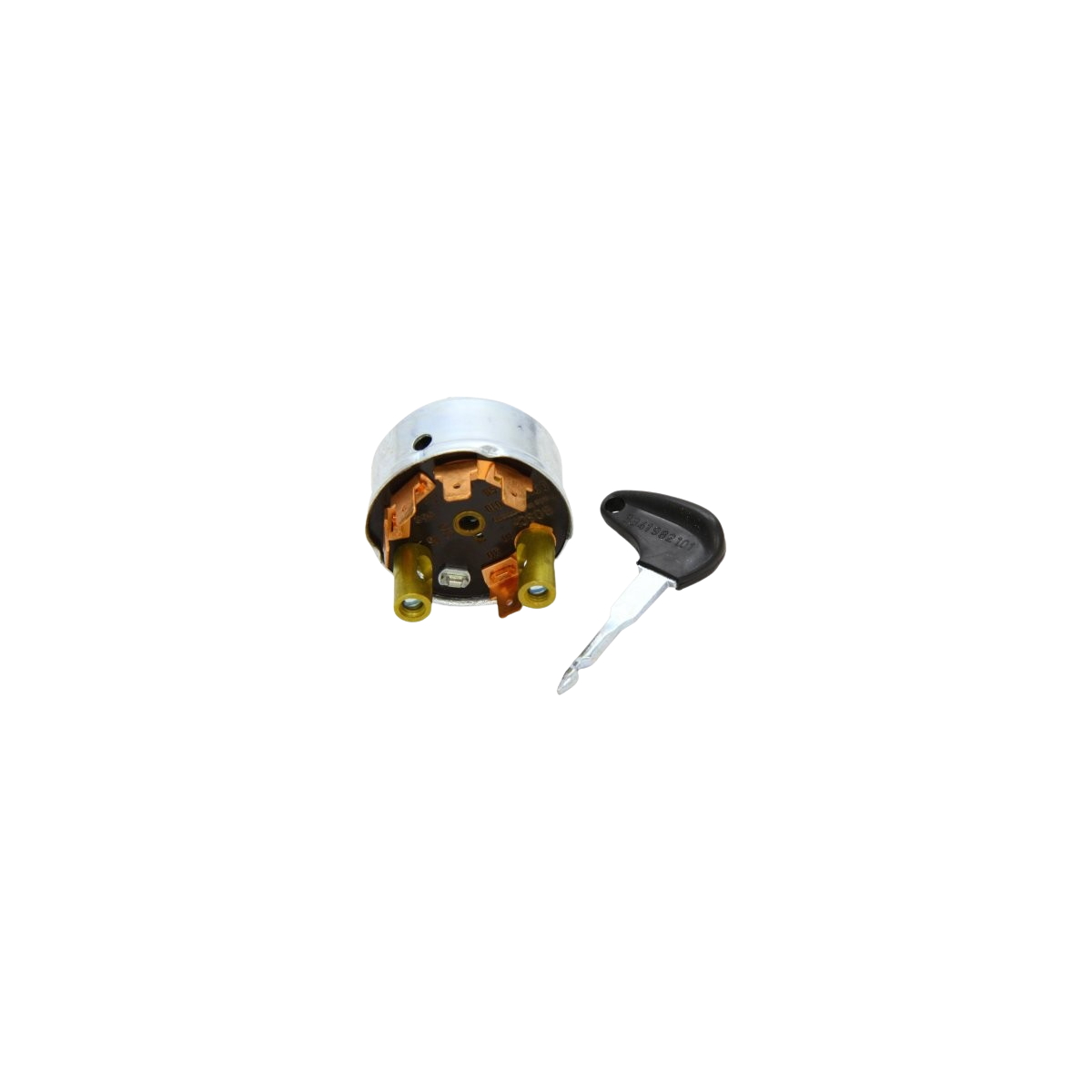

Ignition Switch / Key Starter
Request now
€0.00
VAT included
Durable key-operated switch for vehicles and machines up to 24 V. Metal housing Ø 48 mm, key removable in all positions. Mounted via polished aluminium octagonal nut (M26). With battery relay function and screw terminals. Switching power up to 250 W.
🧩 Universally applicable (vehicles & machinery up to 24 V)
Three-position ignition switch (0 / 1 / 2), ideal for controlling lights, consumers, and battery relays – perfect for vintage tractors, industrial vehicles, and equipment.
🔐 Key operation – flexible & secure
✔ Nickel-plated key with black plastic-coated grip
✔ Key removable in all positions
🏗 Robust construction & easy mounting
✔ Housing diameter: Ø 48 mm
✔ Mounting hole: Ø 26.5 mm with anti-rotation slot 33.5 × 7.5 mm
✔ Fixed using polished aluminium octagonal nut M26 × 1
✔ Suitable for wall thickness up to 2 mm
✔ Housing and washer zinc-coated
🔌 Electrical specs & extra features
✔ Load: 100 A at 24 V for 2 minutes (terminal 15)
✔ Additional feature: battery relay control
✔ Switching power:
• Terminal 50c → 20 W
• Terminal 56 → 100 W
• Terminal 58 → 180 W
• Terminal 15 → 250 W
🔧 Connection & scope of delivery
✔ Screw terminal connections – easy installation
✔ Supplied with one key
| Position | Function | Key inserted | Key removed |
|---|---|---|---|
| 0 | Off | – | – |
| 01 | Daytime consumers | 30–15 | – |
| 02 | Battery relay active | 30–15–50c | – |
| 1 | Parking lights | 30–15, 30–58 | 30–58 |
| 2 | Main lights | 30–15, 30–56–58 | 30–56–58 |
🔧 Not sure if this ignition switch fits your application? No worries – contact us, we’re happy to help!
3419
2 Items
Data sheet
- Dimensions
- Ø 48 mm
- Required quantity
- 1
- Component
- Electrics & lighting
